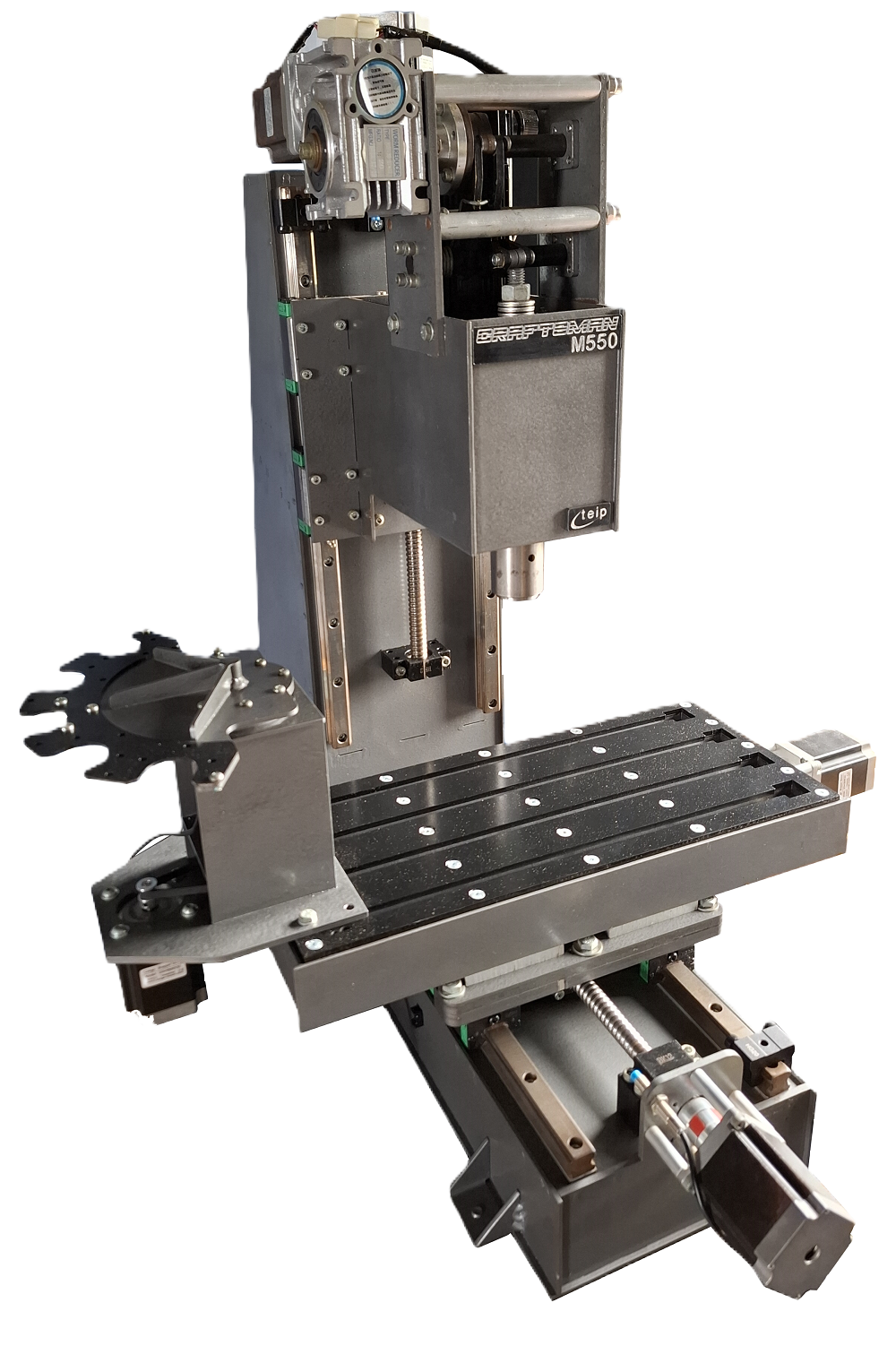

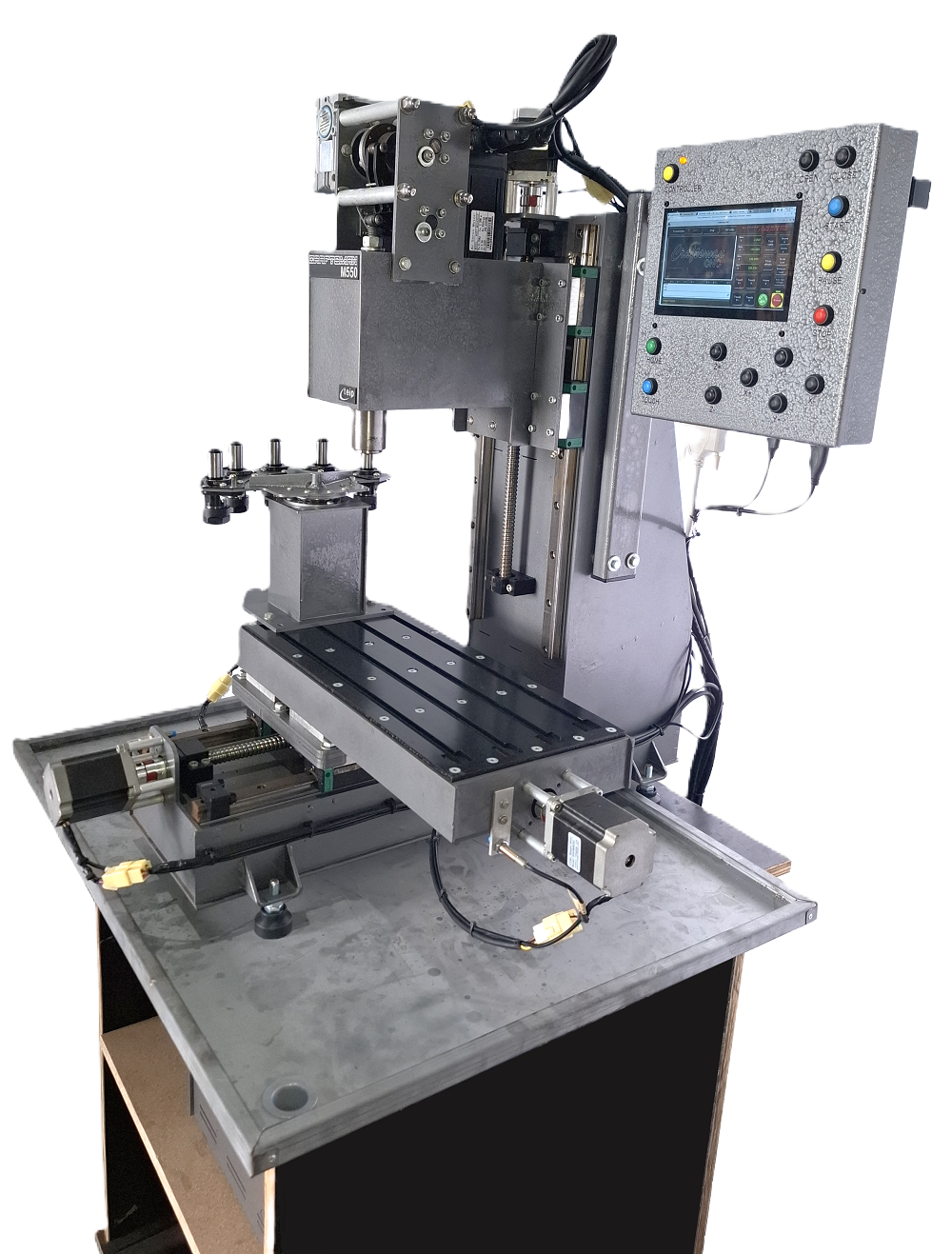

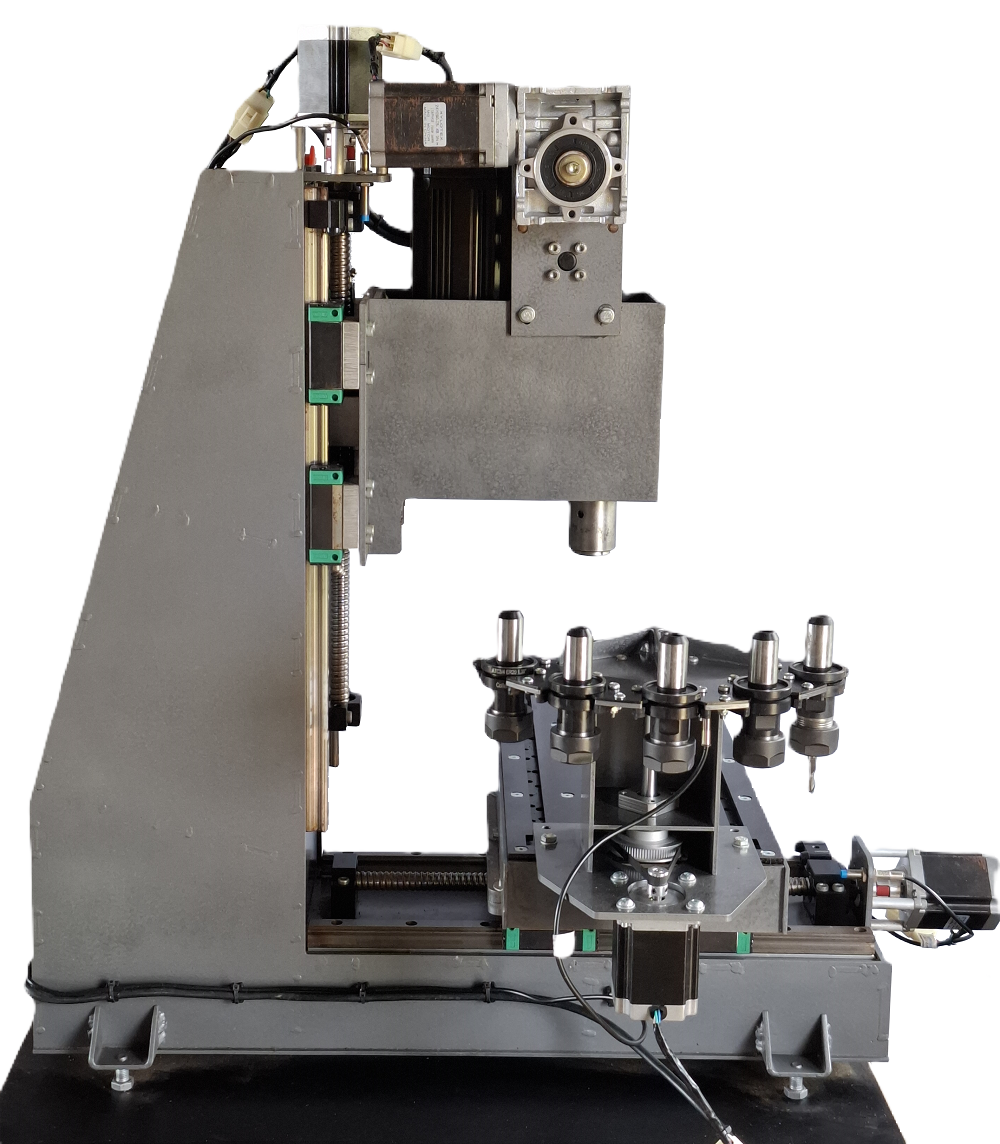

( Image shown with chip tray, Quick change and Auto tool change carousel options )

Craftsman M550

Craftsman M550 cnc mill

A sturdy and robust steel frame gives the precision needed at higher feed speeds. Zero backlash ball screws and linear ball slides on supported linear rails on all axis add to the Craftsman M550's efficiency. An ideal table top machine at an affordable price.

Unpack your new Craftsman M550 from the pallet, plug in AC power and start working.

The 4 axis stepper controller enables you to add a 4th axis stepper for rotary, lathe or divider work as an extra option, making your Craftsman M550 even more versatile.

$7500

View in Action

M550 thread milling

M550 doing a series of auto tool changes

Specifications

ITEM SPECIFICATION
Spindle:Servo spindle 3000RPM
Output:750Watt
Collet size:R8
Collets:3 x ER20 TTS tool holders
Stepper motors:3 x 290oz/inch stepper motors
Stepper drivers:4 axis stepper drivers (X, Y, Z, A)
Controller:P4 Linux based processing unit
Software:Custom LinuxCNC controller software
Monitor:7" Touch screen
Work envelope:X: 230
Y: 205
Z: 220
Worktable:T-slotted
Size:500mm x 200mm
Home switches:Proximity switches on all axis
Axis touch:Manual touch plate
