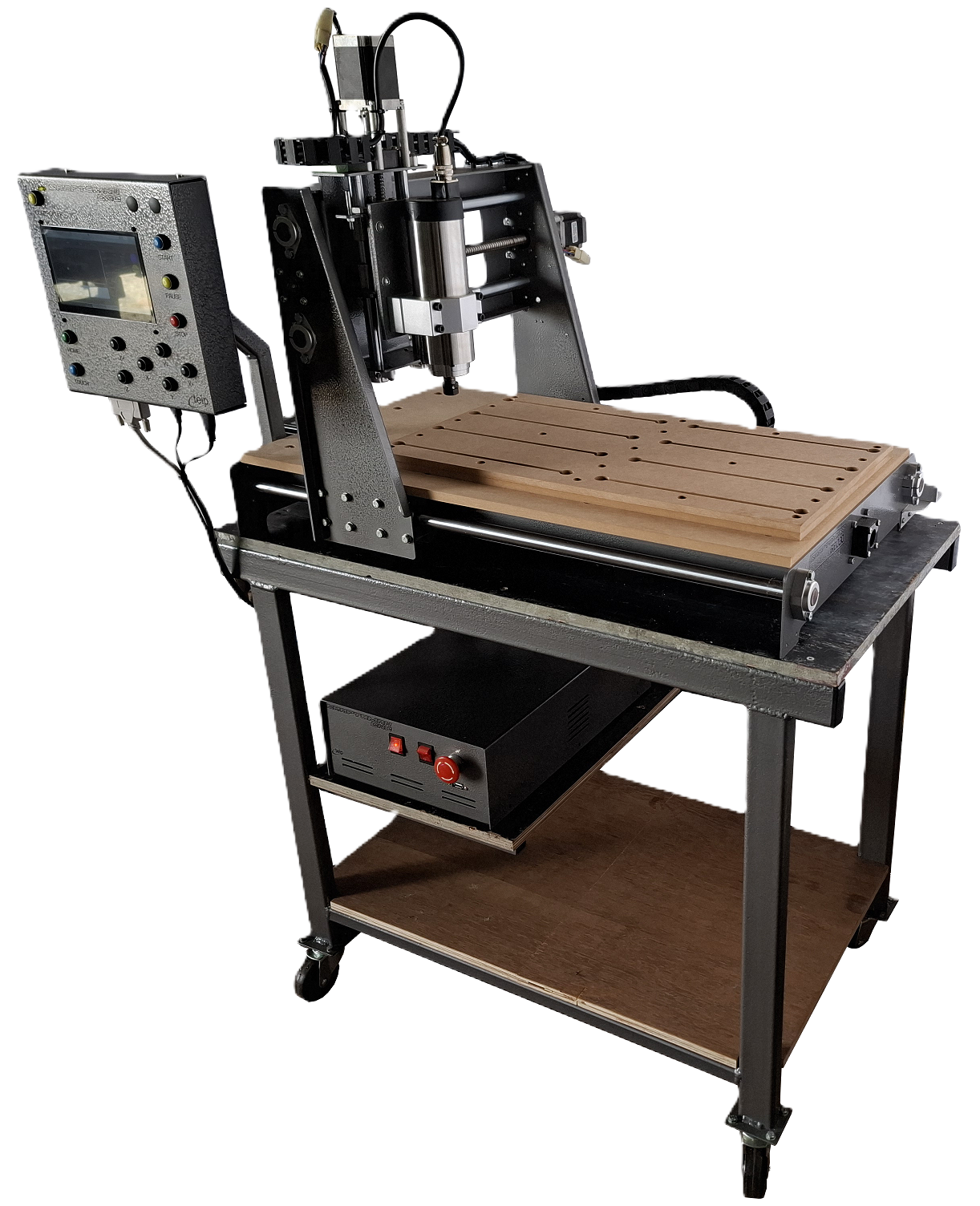

( Image shown with machine stand option )

Craftsman R6030

Craftsman R6030 cnc router.

A sturdy and robust steel frame gives the precision needed at higher feed speeds. Zero backlash ball screws and linear ball slides on supported linear rails on all axis add to the Craftsman R60-30's efficiency. An ideal table top machine at an affordable price.

Unpack your new Craftsman R60-30 from the pallet, plug in AC power and start working.

The 4 axis stepper controller enables you to add a 4th axis stepper for rotary, lathe or divider work as an extra option, making your Craftsman R60-30 even more versatile.


$4500

View in Action

R6030 machining a 3D relief

R6030 doing a homing sequence

Specifications

ITEM SPECIFICATION
Spindle:High frequency - Variable speed - 24000RPM
Output:800Watt (1500Watt option available)
Collet size:ER11 (1/4inch)
Collets:8 piece ER11 collet set (1mm-7mm)
Stepper motors:3 x 290oz/inch stepper motors
Stepper drivers:4 axis stepper drivers (X, Y, Z, A)
Controller:P4 Linux based processing unit
Software:Custom LinuxCNC controller software
Monitor:7" Touch screen
Work envelope:X: 600
Y: 300
Z: 150
Worktable:12mm MDF
Size:780mm x 440mm
Spoilboard:T-slotted 18mm MDF
Size:600mm x 300mm
Home switches:Proximity switches on all axis
Axis touch:Manual touch plate
